Pallet Rack Wire Decking, or Wire Mesh Deck, provides a safe surface to support pallets for pallet racking. Wire decking increases the safety and versatility of your pallet rack system by allowing you to store more than just standard pallets. Bins, boxes, and other products are commonly stored on wire decking.

Waterfall style rests on top of the beams

2″ x 4″ grid pattern

Powder coated gray for highly durable finish

3 U-channel supports designed for standard 1 5/8″ step beams

Wire thickness: 14 ga

Capacity: 2500 lbs (uniform distributed load)

What Size of Pallet Rack Wire Decking Do I Need?

Width: The width of the wire decking depends on the length of the beams.

46″ Width: Used with 4 ft, 8 ft, and 12 ft beams (most common)

52″ Width: Used with 9 ft beams

58″ Width: Used with 10ft beams

Wire decking is widely used in warehouse, laundry room, kitchen, closet or pantry. Wire decking allows for easy identification of shelf contents, and prevents dirt and other debris from accumulating on the shelves because of the holes in the mesh. It can be with powder coated, galvanized, and also spray paint.

We are a professional manufacturer specializing in the production of wire decking products. Our wire mesh decking comes in various thicknesses and mesh dimensions. We also manufacture display rack, wire rack, wire rack decking, welded wire decking, and wire deck panels. Our products are the consistency of engineering design, structure and composition, and are in accordance with national and industrial standards. Our products are made from high-quality stainless steel and galvanized or aluminum parts. Our galvanized or aluminum walking deck with salt water resistant feature can be used over coastal waters. Most of our products are for export to Europe, the USA, Southeast Asia and other countries.

Complete your warehouse rack with wire decking from us. Choose from our wide variety of stock and quick ship sizes, or let us design and build a custom deck to your specifications.

RFQ

1, What is the material being used for your products?

---Mild steel Q235, Q195

2, How is the goods being packed?

---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.

3, What is the payment terms I can get?

---TT or L/C at sight, DP, etc

4, What kind of surface treatment do you provide for your goods?

---Electric galvanized, hot-dip galvanized, painting or powder coating is available.

5, What is the loading capacity?

--- In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model and heavy-duty(1000~1700kg) model available for your choice.

6, Which product can be used in cold storage?

---Mobile rack, wire container, and roll cage are all widely used in cold storage.

7, I like your design, but couldn't find the right model from the products list, is custom size available?

---Yes, we do custom products and projects.

8, I would like to have my own design products and qty is not that big, is it ok?

Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.

9, I don' have drawing or picture available for the custom products, could you design it for me?

---Yes, we can make the best suitable design for you but do need to know the details - such as

a) dimension b) loading capacity c) stack ability d)operation environment

10, What is the minimum quantity can order?

---1x20'GP - qty is variable depending on the size.

11, What is your average production lead time?

---2-3 weeks against formal order and deposit.

12, Do I get any guarantee from your company?

---3~10 years warranty in the case that

A) Proper handling during operation, correctly forklift handling while stacking/un-stacking

B) Overloading is prohibited

C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized)

13, What happens in case any quality problem is identified after arrival?

---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.

Want cost effective and convenient storage of non-standard pallets or non-palletized items within a standard rack arrangement? Install wire decks with Arpac’s pallet rack systems.

Wire decks can easily be reinforced to match the carrying capacity of the load beams.

Also, using welded mesh wire decks, instead of solid wood or metal decks, may reduce fire protection requirements for in-rack sprinkler systems.

Common sizes are available from inventory for quick delivery. For assistance, please contact us.

 Pallet Racking Galvanised Wire Mesh Decks

Increase the versatility of your Pallet Racking with our open wire mesh panels

Simply select the kit that corresponds to the width & depth of your pallet racking bays

Wire decks are perfect for storing irregular sized loads, or smaller boxes & cartons

The versatile alternative to timber & steel pallet racking decking

Especially recommended for environments where fire regulations stipulate against the use of timber decks

Wire mesh combines low weight with high strength

Manufactured from premium-grade, electro-galvanised steel

Electro-galvanised finish protects from corrosion

Suitable for storing irregular sized loads or boxed goods for easy hand-picking access

Brilliantly suited to damp environments

Open wire mesh decking is also recommended for environments with sprinkler systems

Quick & simple installation - simply place over pallet racking beams

Easy to clean & maintain

Open wire design encourages free air flow & prevents the accumulation of dust

Wire mesh decks offer head protection from falling items when working under tunnel bays

Please Note:

When using mesh decks where the pallet level loads are supported by the pallet beams, the capacity per level will be the same as the pallet beam capacity.

Un-palletised loads not placed directly on the pallet beams will be subject to the load capacities shown in the Product Information section above.

Loads must be uniformly distributed across the mesh decks, and supported by a minimum of 3x mesh deck cross bars.

Mesh Decks are not suitable for storing half pallets?.

There are several various types of wire decking, each with their own advantages. They include:

Inside Waterfall Deck

This type leaves pallet rack beams open for order picking and barcodes/labels are easily accessible.

Up-Turned Waterfall Deck

This option is designed with built-in backstop to prevent materials/products from being pushed too far off the pallet rack.

Drop-In/Flat Flush Deck

Flat flush type is best used for hand-stacked loads and order picking, and it fits well inside load beams.

Flared Channel Deck

This type features a waterfall design with a flared channel that is specifically for box and structural beams.

Inverted Channel Deck

This decking is crafted to prevent the collection of dust and remains inside the channel, with an inverted design that fits snug over beams.

Standard U-Channel Deck

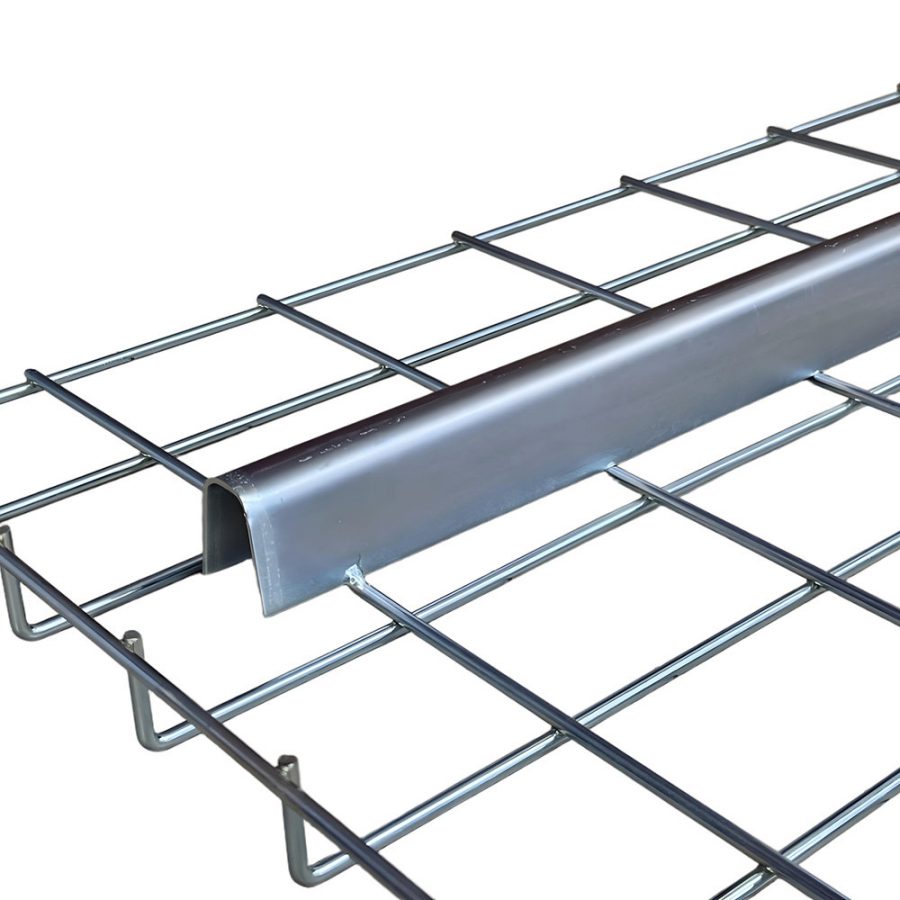

This wire deck also features a waterfall design, with the addition of a standard U-channel to fit over common step beams.

Benefits of Layout Design

Visualizing how the storage, shelving or racking solution will look – before you buy.

Testing and changing layouts at design stage to maximize available space.

Determining the right mix of shelving or racking product, depending on your final design.

Having tangible design plans to present to senior managers, chief executives or chief financial officers.

carries a wide selection of powder coat painted and galvanized wire mesh decking for pallet racking. Wire decking is an ideal add-on for anyone looking for split case storage of items that require a shelf. Wire mesh decking provides a solid shelf surface for added protection, while the open wire mesh allows for water from sprinklers the open access needed in the event of a fire. All the wire decks we carry use heavy duty wire weaved into a mesh grid to create a surface for product to sit on. Laid directly over pallet rack beams, wire decking creates a platform that adds an extra layer of safety and support to the pallet rack itself. Since they are simple to install, wire decks are a popular product in warehouse settings.

We are a China based manufacturer specialising in wire mesh decking, anti-collapse and security partitions for pallet racking & warehouses.
